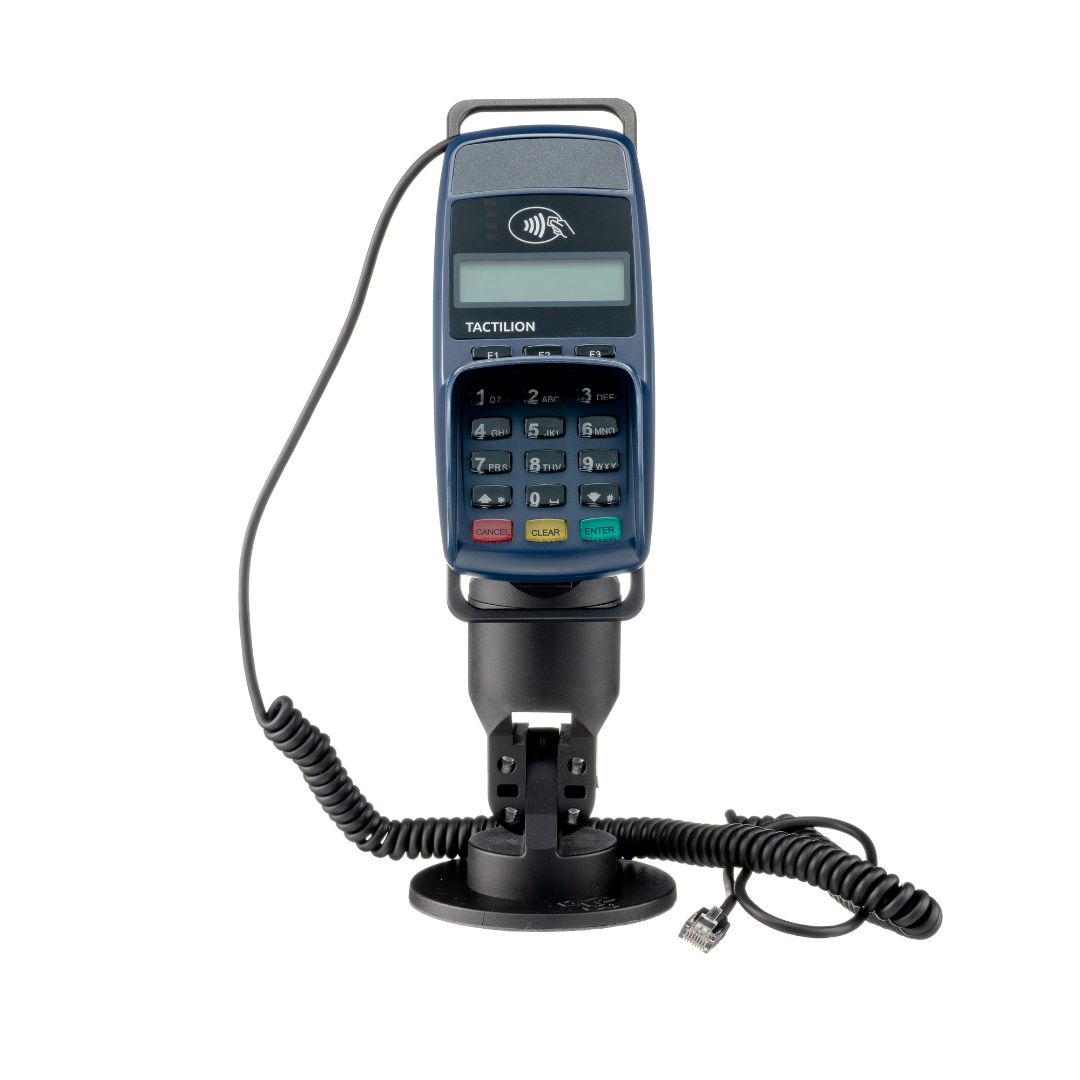

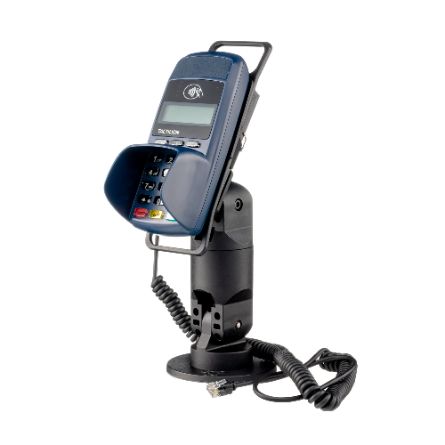

pin-pad TACTILION g101

  • Advanced encryption technology
  • Friendly software and hardware interfaces
  • Flexible to connect to PC, POS
  • PCI PIN, qPBOC, PayPass, PayWave certified
  • Support NFC (contactless) payment and E-signature
  • Secure and sensitive.

CPU

Cortex M4, 4 cores, 32-Bit CPU; Secure CPU

Memory

512 Kb Flash, 64 Kb RAM, extendable

Display

128 x 64 monochrome screen

Keypad

10 Numeric Keys, 8 Function Keys

Card readers:

Contactless: NFC 13.56MHz, support ISO14443, Type A/B/C, Mifare Card M1 (Optional)

Communication

RS-232

Security

PCI PTS 4.x, EMV L1, PayPass, PayWave, Amex, TQM, CE, ROSH

Power & Battery

Communication port powered DC 5V/ 500 mAh

Size

L x W x H = 161mm x 73,5mm x 60mm (with privacy shield)

Weight

215g

Environmental parameters:

  • Operating temperature: 0° to 50° C
  • Storing temperature: -20° to 60° C
  • Humidity: 5% to 95%, non-condensing

Multi-media

Buzzer

Accessories
