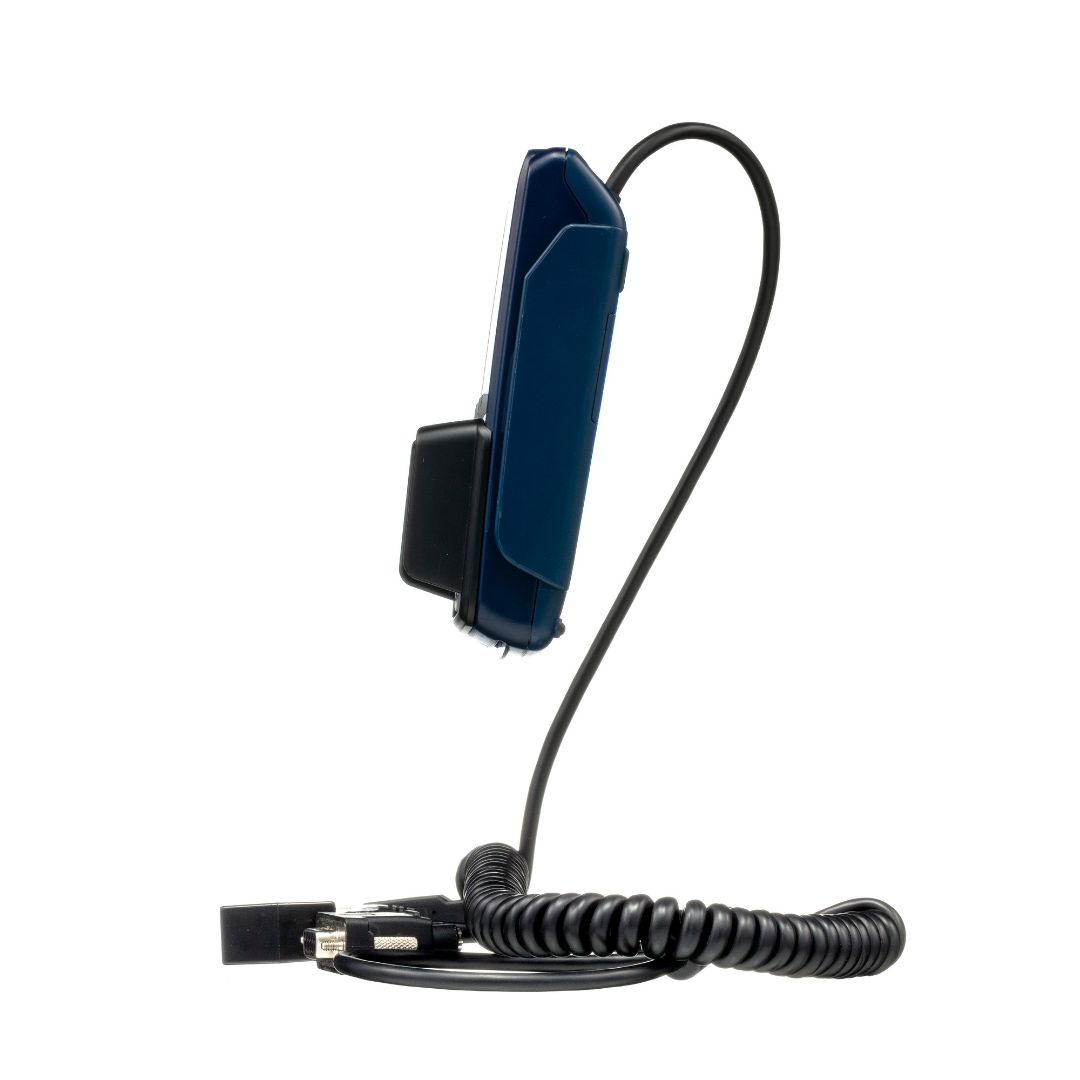

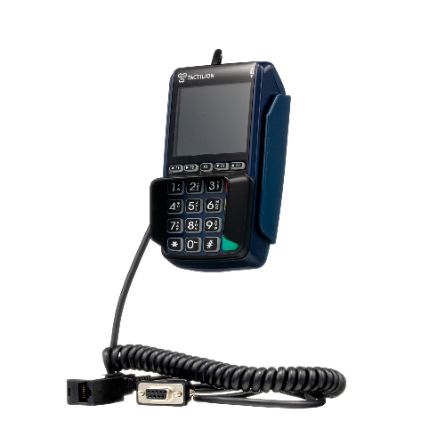

pin-pad TACTILION t300

  • COMPACT, SECURE, USER FRIENDLY
  • T300 pin-pad is a compact in size and provides all secure payment options for EMV chip, swipe and contactless payment
  • It is designed to integrate with most POS-terminals or cash registers in the retail environment
All Payment Options and High Performance:

  • ARM Contex secure processor (over 500MHz)
  • Large 2,8" Color LCD display
  • Wide keypad with bright backlit
  • Support EMV Chip & Pin (PCI PTS V4 X certified)
  • Support MagStripe and Contactless payment
Optional Features:

  • Resistive touch screen
  • Build-in contactless reader
  • Ethernet 10 BaseT interface

CPU

ARM Cortex А5 secure processor

Memory

RAM 64 MB, Flash 128 MB / 512 MB

OS

LINUX

Display

  • 2,8" Colourful LCD, 320 x 240
  • Resistant touchscreen with signature capture functionality (Optional)

Keypad

10 Numeric Keys, 10 Function Keys

Card readers:

  • Magstripe: Triple tracks, bi-directional
  • Smart Card: EMV & PBOC approved
  • Contactless: NFC 13.56MHz, support ISO14443, Type A/B/C, Mifare Card M1 (Optional)

Communication

RS-232, 1 USB, Ethernet (Optional)

Security

PCI PTS 4.x, EMV L1 & L2, PayPass, PayWave, Amex, TQM, CE, ROSH

Power & Battery

DC 5V, 1A

Size

L x W x H = 130mm x 80mm x 32mm

Weight

210 g

Environmental parameters:

  • Temperature: 0° to 45° C
  • Humidity: 0% to 25%, non-condensing

Multi-media

Buzzer

Device Ports

1 Micro-USB

Slots

SAM: 2

Accessories
