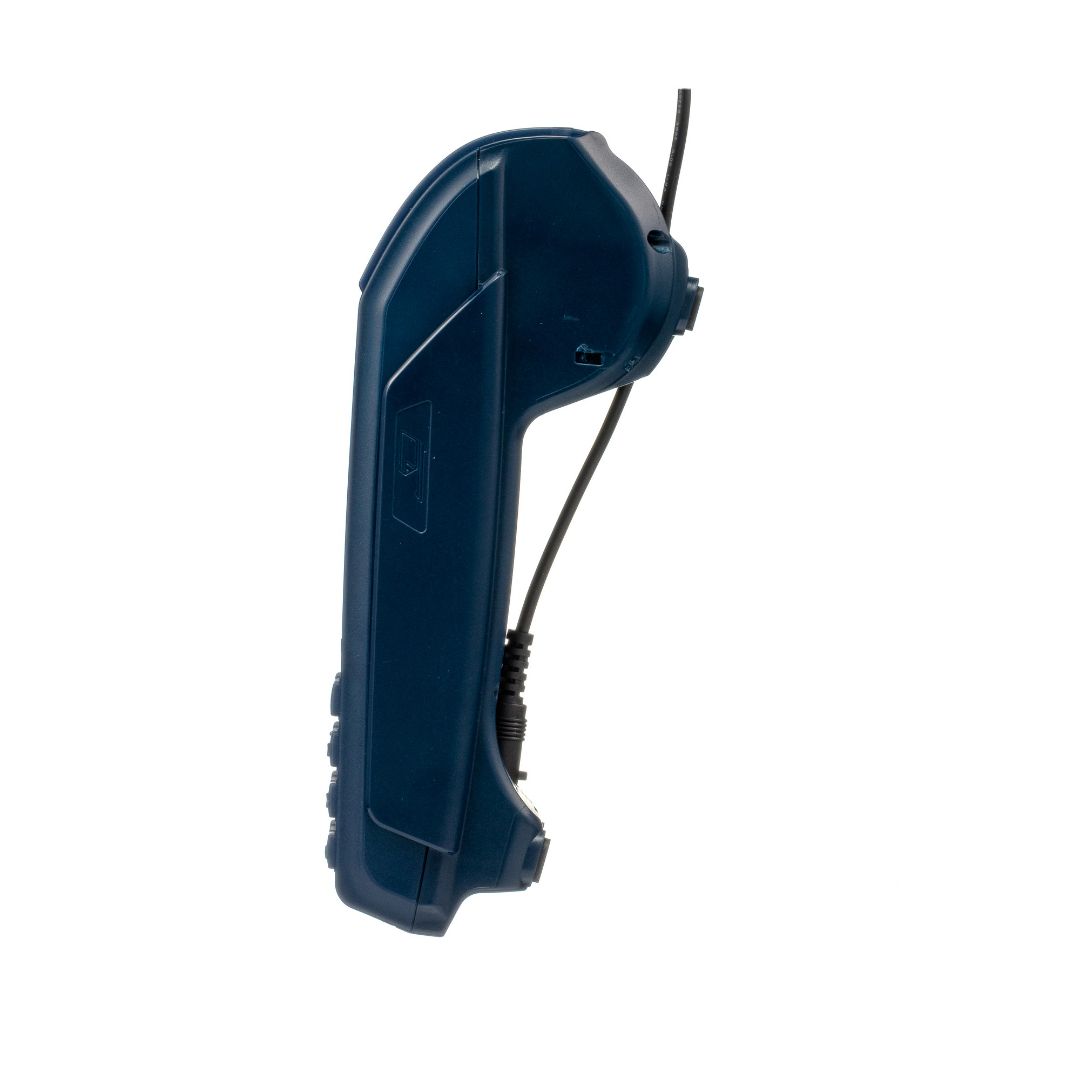

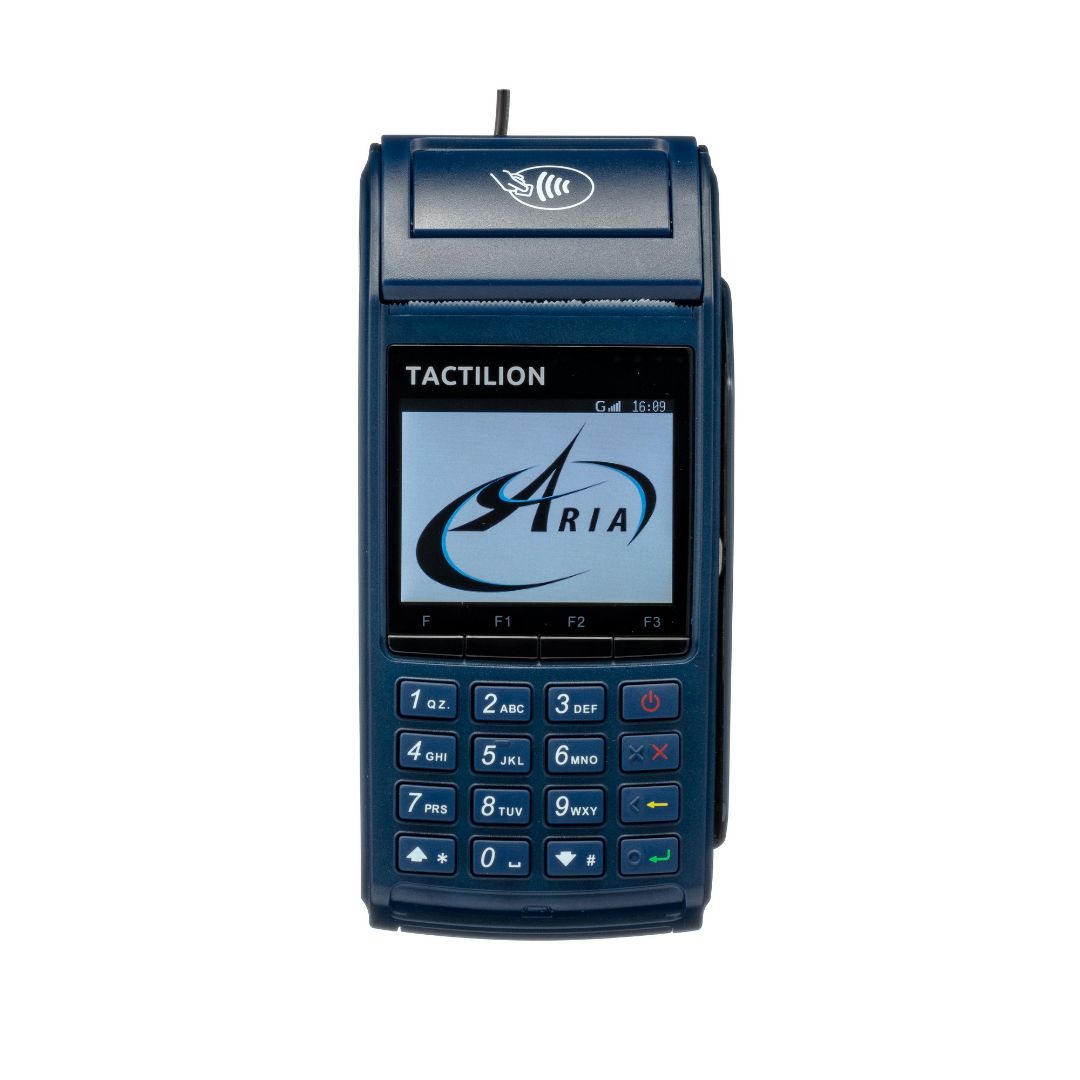

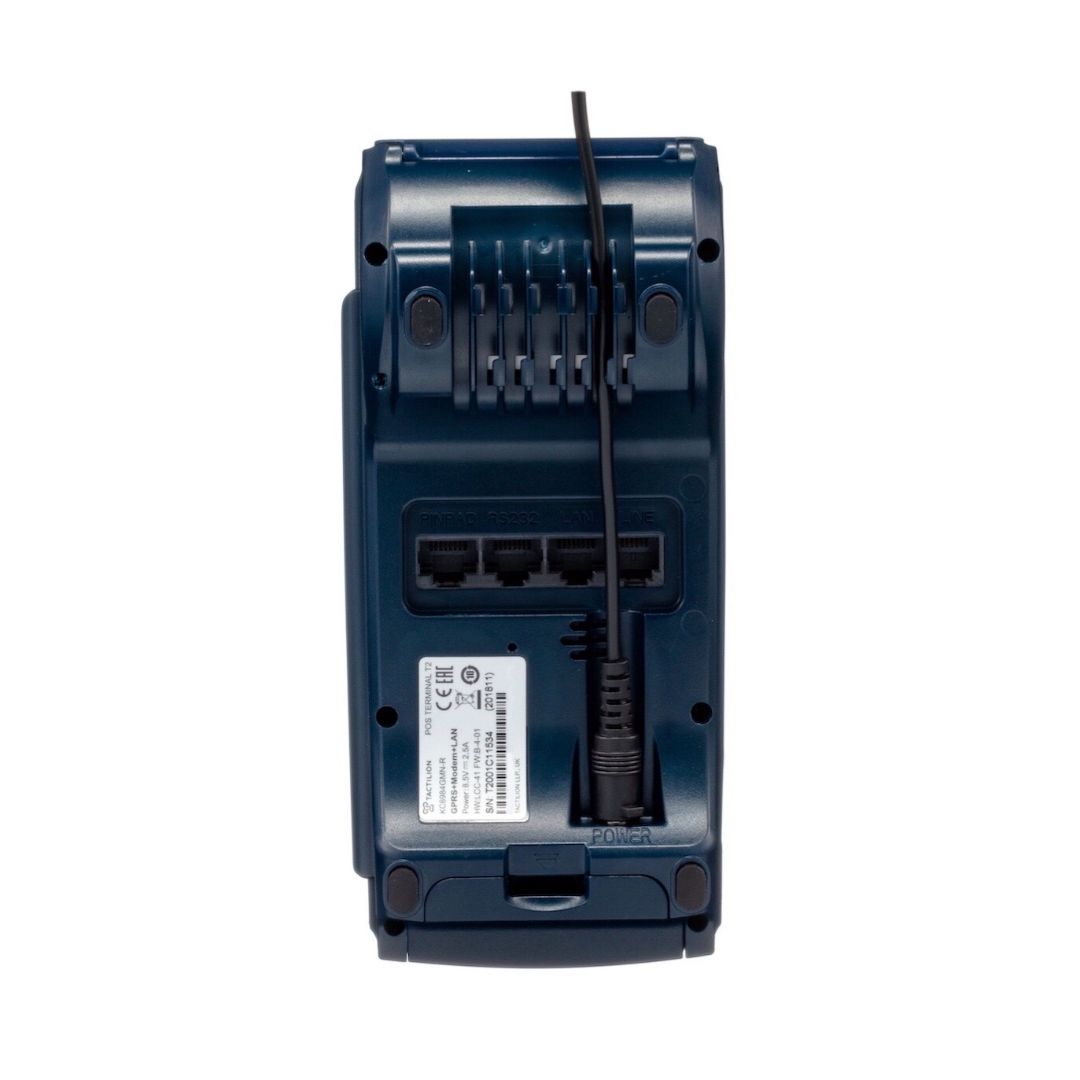

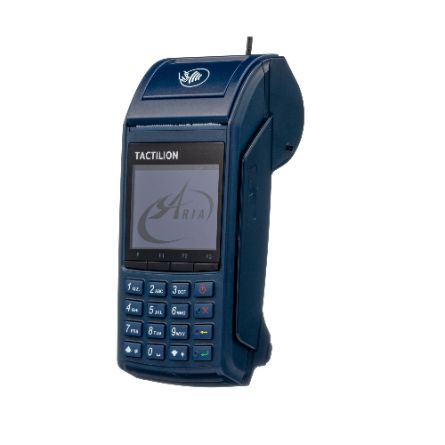

pos-terminal tactilion t2
CPU
Cortex A9, 4 cores, 32-Bit CPU; Secure CPU
MEMORY
256 Mb Flash, 128 Mb RAM
OS
LINUX
Display
2,4 ‘‘ (320 x 240)
Capacitive Touchscreen
Supports E-Signature
KEYPAD
10 Power Key
10 Functional Keys
CARD READERS
Magstripe Cards: Track 1/2/3, Bi-Directional
Smart Cards: EMV & PBOC
Contactless Cards: NFC 13.56MHz. ISO14443, Type A/B/C, Mifare Card M1 (optional)
COMMUNICATION
Modem / Ethernet / GPRS / 3G (Optional)
SECURITY
PCI PTS 4.x, EMV L1 & L2, PayPass, PayWave, Amex, TQM, CE, ROSH
POWER & BATTERY
Input: 100-240 V; 50-60 Hz; 0,8 А
Output: 8,5 V; 2,5 А
SIZE
175x81x68mm
WEIGHT
320 g
ENVIRONMENTAL PARAMETERS
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5% to 95% (non- Condensing)
MULTI-MEDIA
Buzzer
PRINTER
High Speed Thermal Printer
Paper Roll Width: 58mm, Diameter: 40mm
INTERFACES
1 RS-232
1 Ethernet
1 USB Host
1 micro-USB Slave
1 Pin-Pad
1 Telephone line
1 Ethernet
1 USB Host
1 micro-USB Slave
1 Pin-Pad
1 Telephone line
SLOTS
PSAM: 2
SIM: 1
SD: 1
SIM: 1
SD: 1
