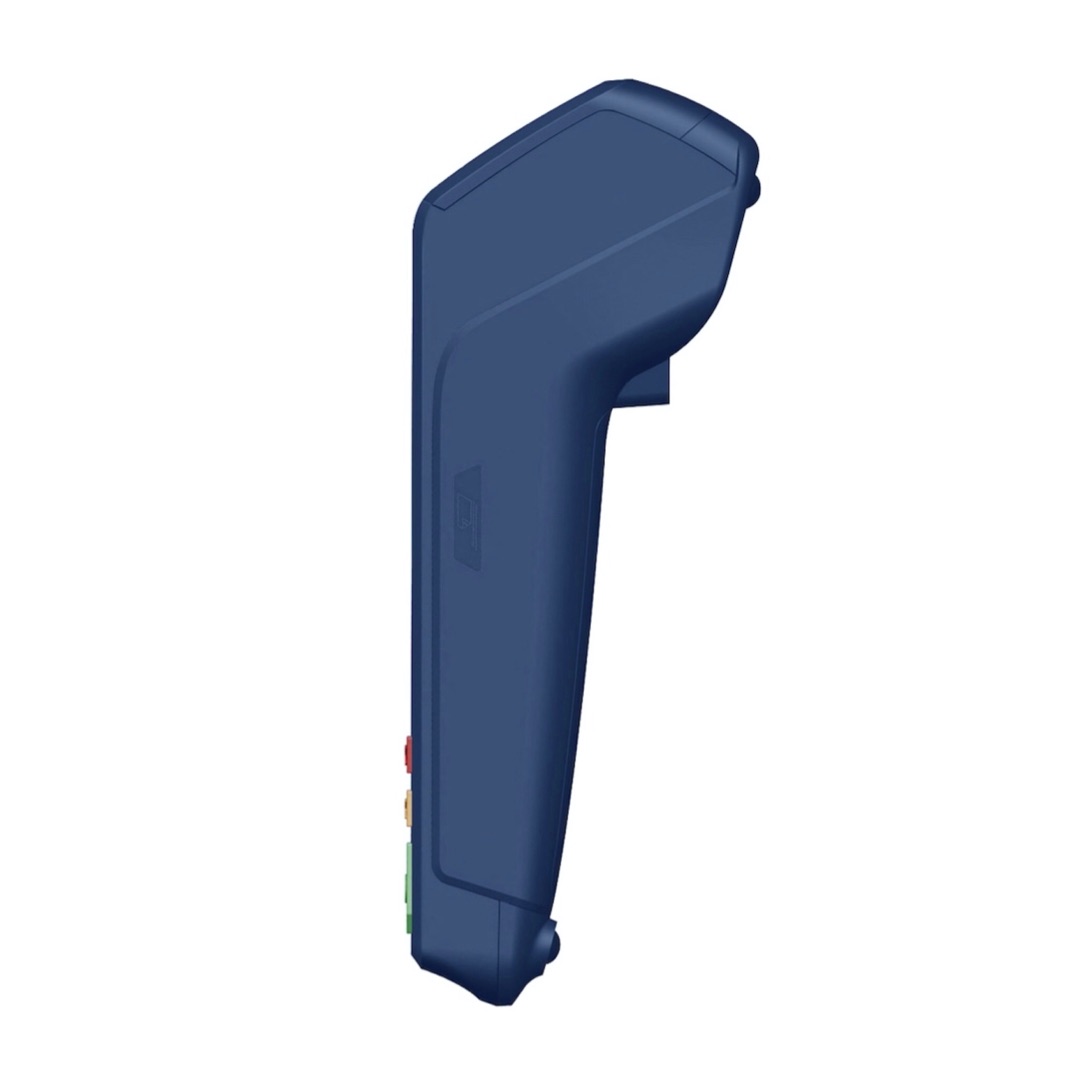

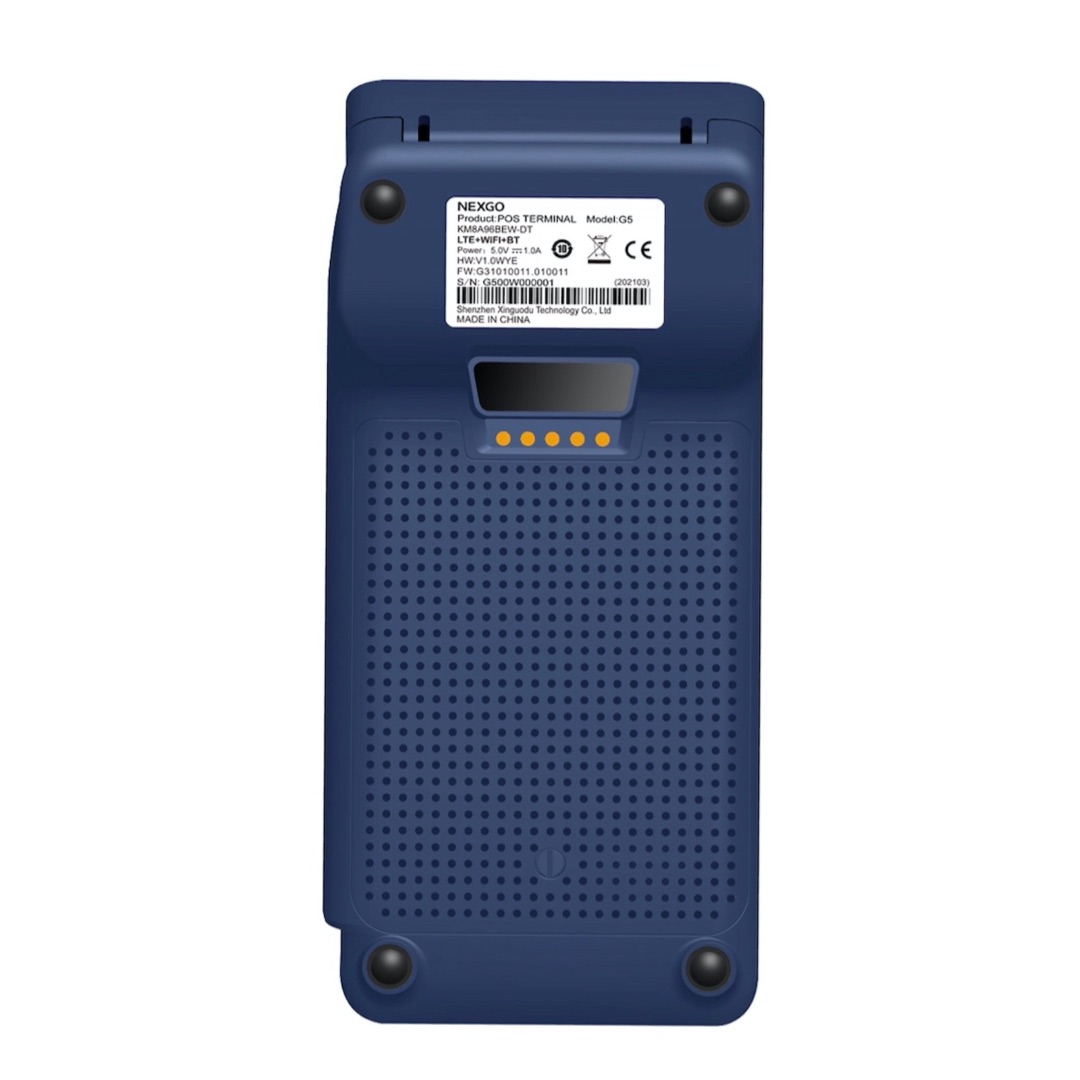

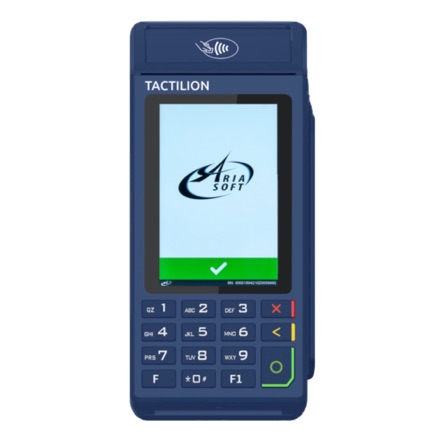

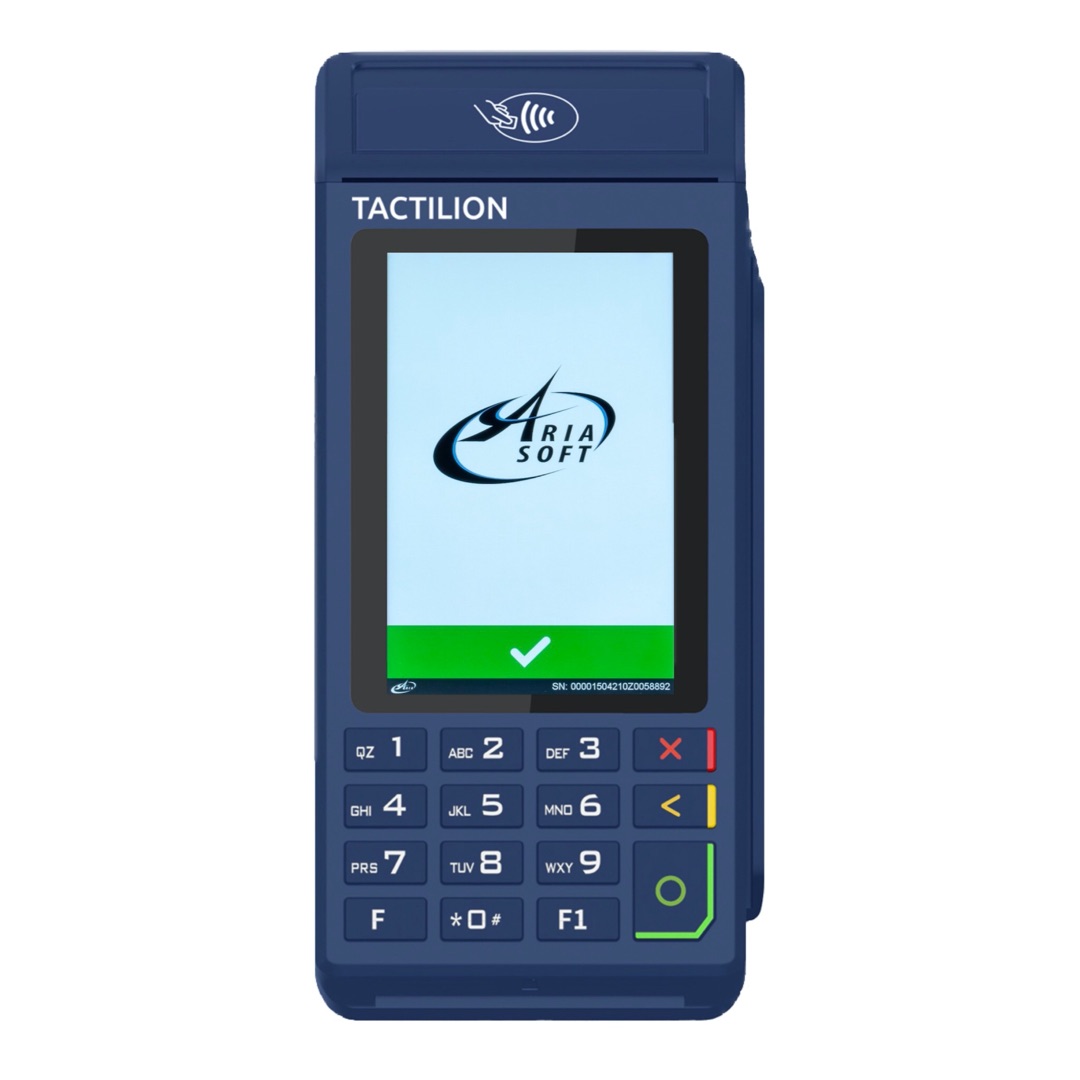

mobile POs-terminal TACTILION G5
CPU
ARM CORTEX-A7 1.3 GHz
Memory
512MБFLASH
256MБ RAM
256MБ RAM
OS
LINUX
Display
3,5 " (320 x 480)
Capacitive Touchscreen
Supports E-Signature
Capacitive Touchscreen
Supports E-Signature
Keypad
10 Power Key
6 Functional Keys
6 Functional Keys
Card readers:
Magstripe Cards: Track 1/2/3, Bi-Directional, ISO7812
Smart Cards: 1,8/3/5 В, ISO 7816
Contactless Cards: NFC 13.56MHz, ISO14443, Type A/B
Smart Cards: 1,8/3/5 В, ISO 7816
Contactless Cards: NFC 13.56MHz, ISO14443, Type A/B
Communication
4G/3G/2G,
Wi-Fi 2.4G&5G Dual-Mode (option)
BLE5.0 (option)
Wi-Fi 2.4G&5G Dual-Mode (option)
BLE5.0 (option)
Security
PCI PTS 6.x, EMV L1 & L2, PayPass, PayWave, AmEx, TQM, CE, ROHS, UPTS 2.X
Power & Battery
Li-Po battery: 3,7 V, 2600 mAh
Size
L x W x H = 174 x 79,5 x 61mm
Weight
388 g (battery included)
Environmental parameters:
Operating temperature: 0° to 50° C
Storing temperature: -20° to 70° C
Humidity: 5% to 95%, non-condensing
Storing temperature: -20° to 70° C
Humidity: 5% to 95%, non-condensing
Multi-media
Built-in speaker
Printer
High Speed Thermal Printer
Paper Roll Width: 58mm, Diameter: 40mm
Paper Roll Width: 58mm, Diameter: 40mm
INTERFACES
1 x Type-C USB,
1 x DC Port (option)
1 x DC Port (option)
Slots
2 x PSAM
2 x SIM
1 x SD
2 x SIM
1 x SD
CAMERA
Barcode Matrix 1D/2D Scanner
