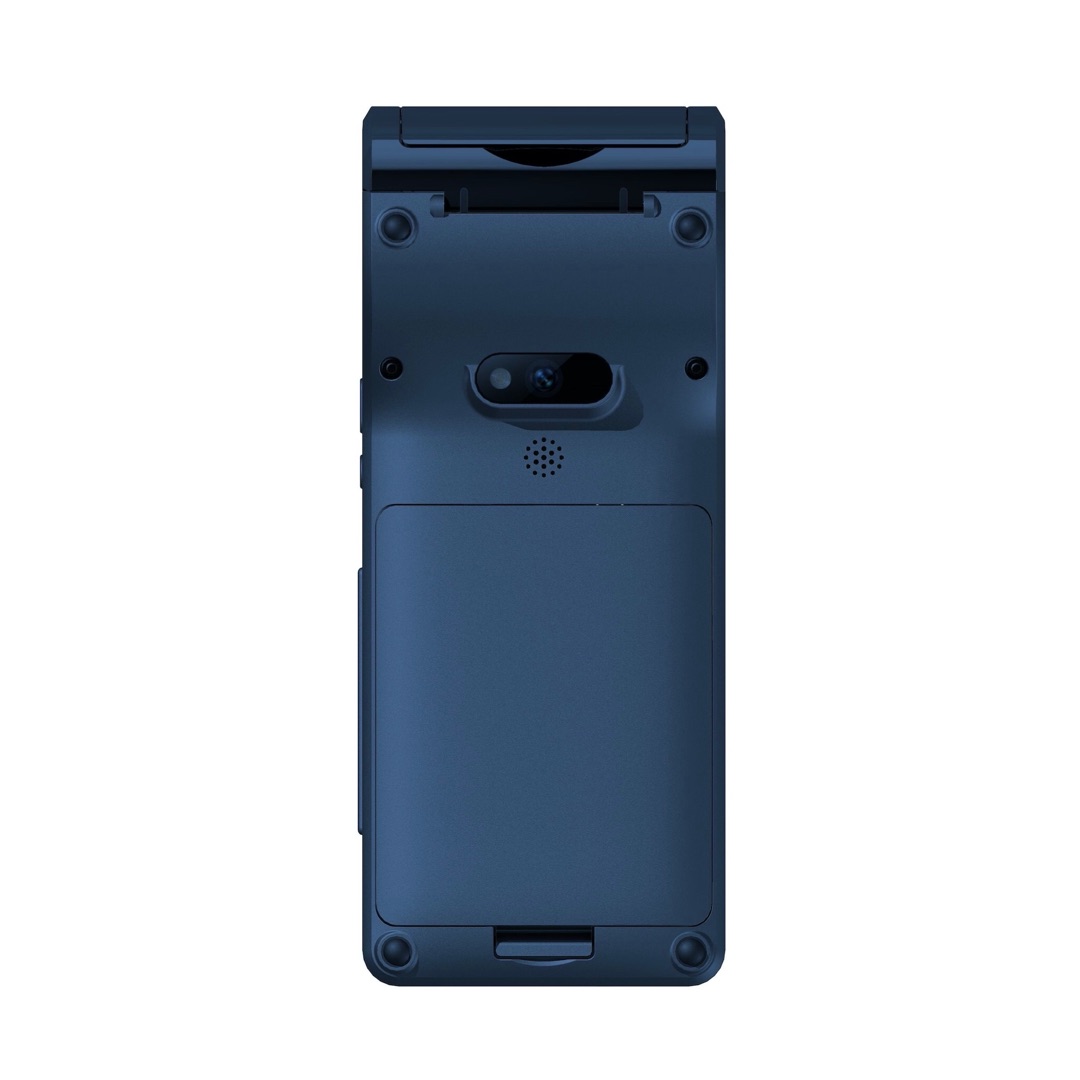

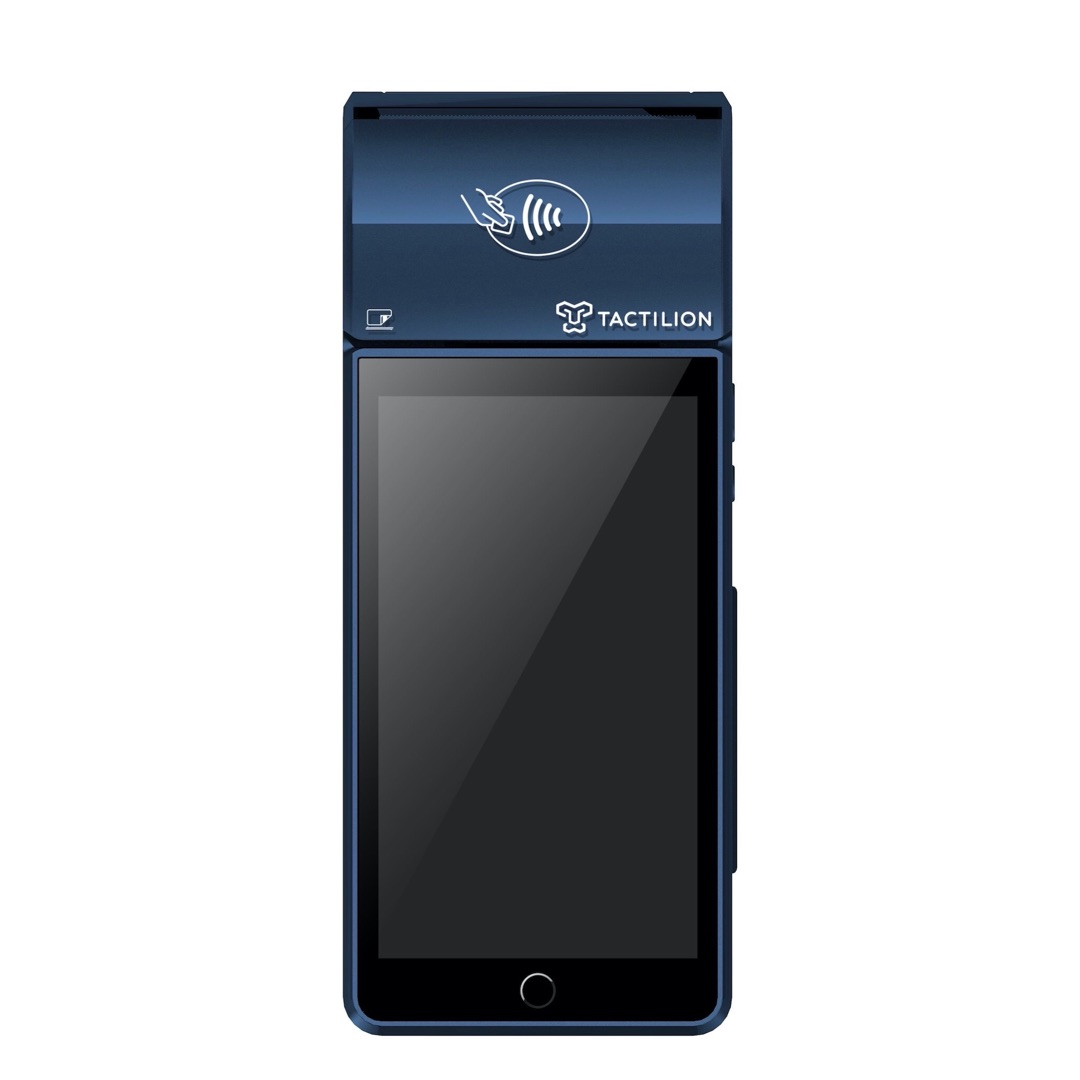

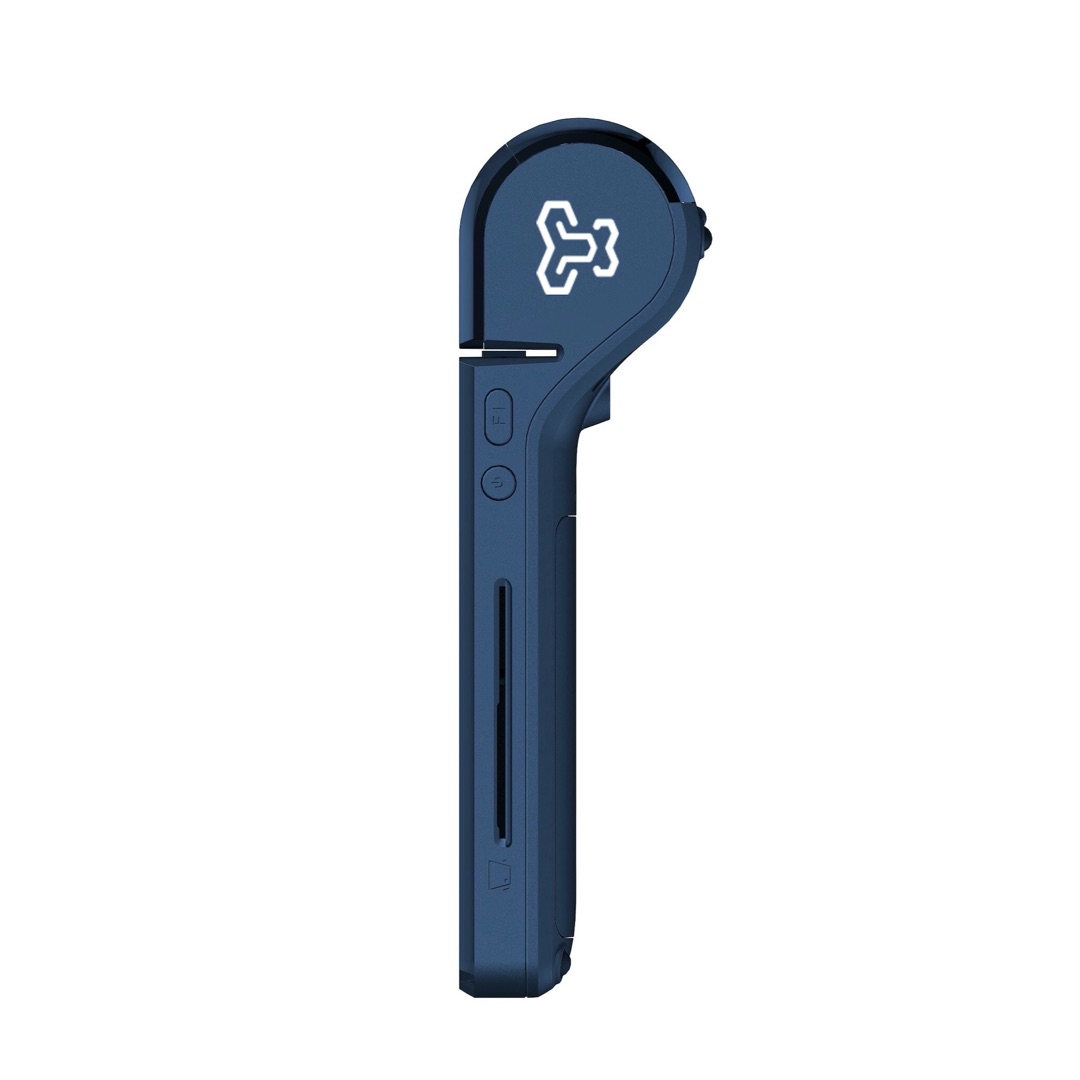

POS-Terminal T1

SMART-POS TACTILION T1


CPU

  • AP: 64-bit Quad-core Cortex A53 1.3 GHz
  • SP: 32-bit RISC Core (ARMv7-M) 72MHz

Memory

  • 1GBRAM+8GBeMMC
  • TF Card up to 128GB

OS

Android 7.0

Display

  • 5'HD 1280*720 IPS Display
  • Capacitive Multi-touchscreen

Keypad

  • 1 х On/Off
  • 1 х F1(Volume+ default)

Card readers:

  • Magstripe: Track 1/2/3, Bi-Directional, 1S07810/ 7811/7812 compliant
  • Smart Cards: 3V/5V IC card, EMV/ PBOC/1S07816 compliant
  • Contactless Cards: Mifare Card, 1S014443 A/B Visa Paywave, MasterCard paypass

Communication

  • 4G/3G/2G
  • Wi-Fi
  • Bluetooth

Security

PCI PTS 5.x, EMV L1 & L2, PayPass, PayWave, AmEx, TQM, CE, ROHS, UPTS 2.X, Discover D-PAS

Power & Battery

  • Output: 5V/2A
  • Li-Po battery: 4000mAh, 3.8V

Size

L x W x H = 193 x 88 x 54,5 mm

Weight

425 g (battery included)

Environmental parameters:

  • Operating Temperature: -10°C to 55°C
  • Storage Temperature: -20°C to 70°C
  • Relative Humidity: 5% to 95% (non-Condensing)

Multi-media

  • Built-in speaker
  • Microphone

Printer

  • High Speed Thermal Printer
  • Paper Roll Width: 58mm, Diameter: 30mm

INTERFACES

  • 1 x Micro USB

Slots

  • 1 x SIM, 2 x PSAM
  • 2 x SIM, 1 x PSAM (optional)

CAMERA

  • Rear Camera: 2 MP, AF, Flash
  • Barcode Matrix 1D/2D Scanner, 5MP (Optional)

GPS

  • GPS
  • BeiDou
