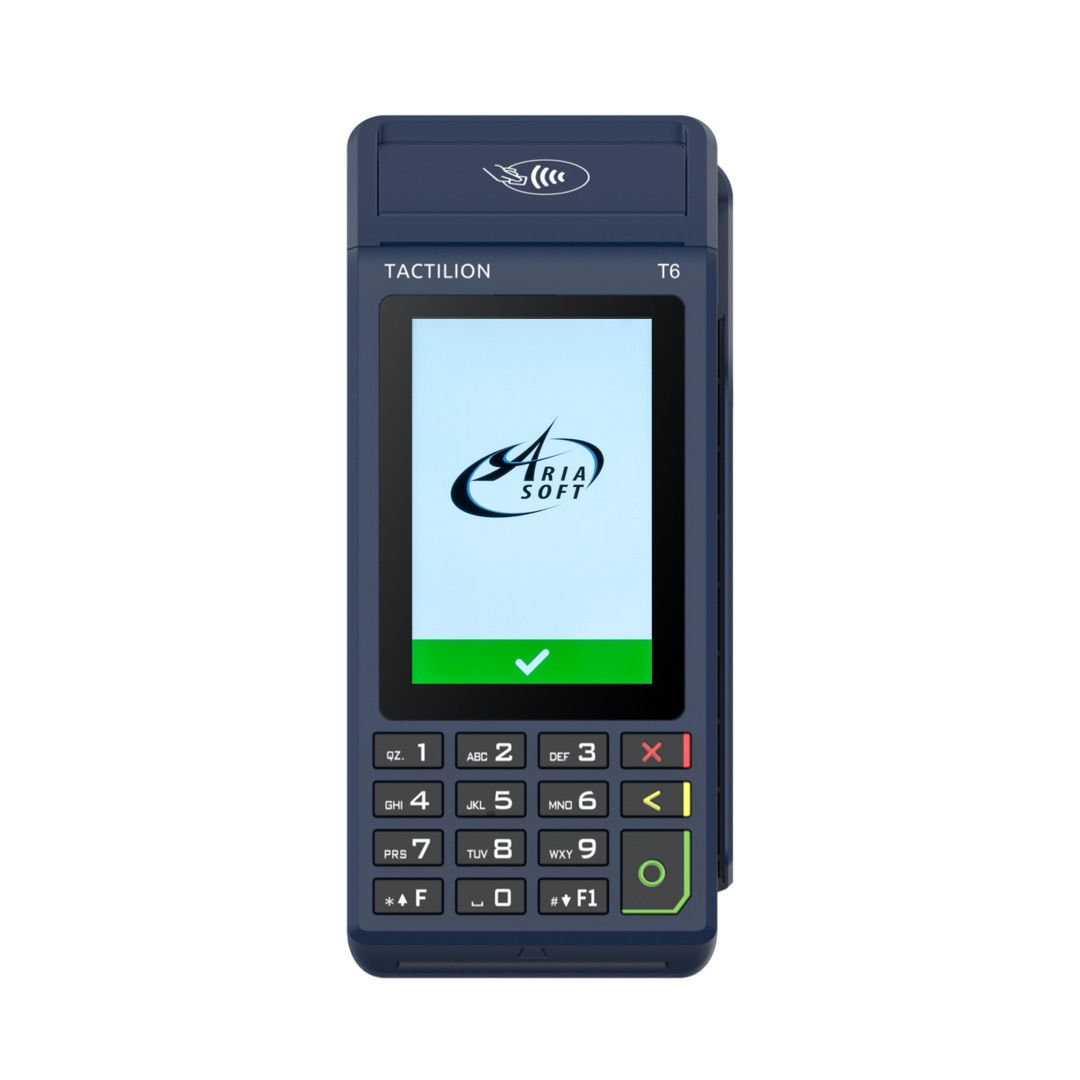

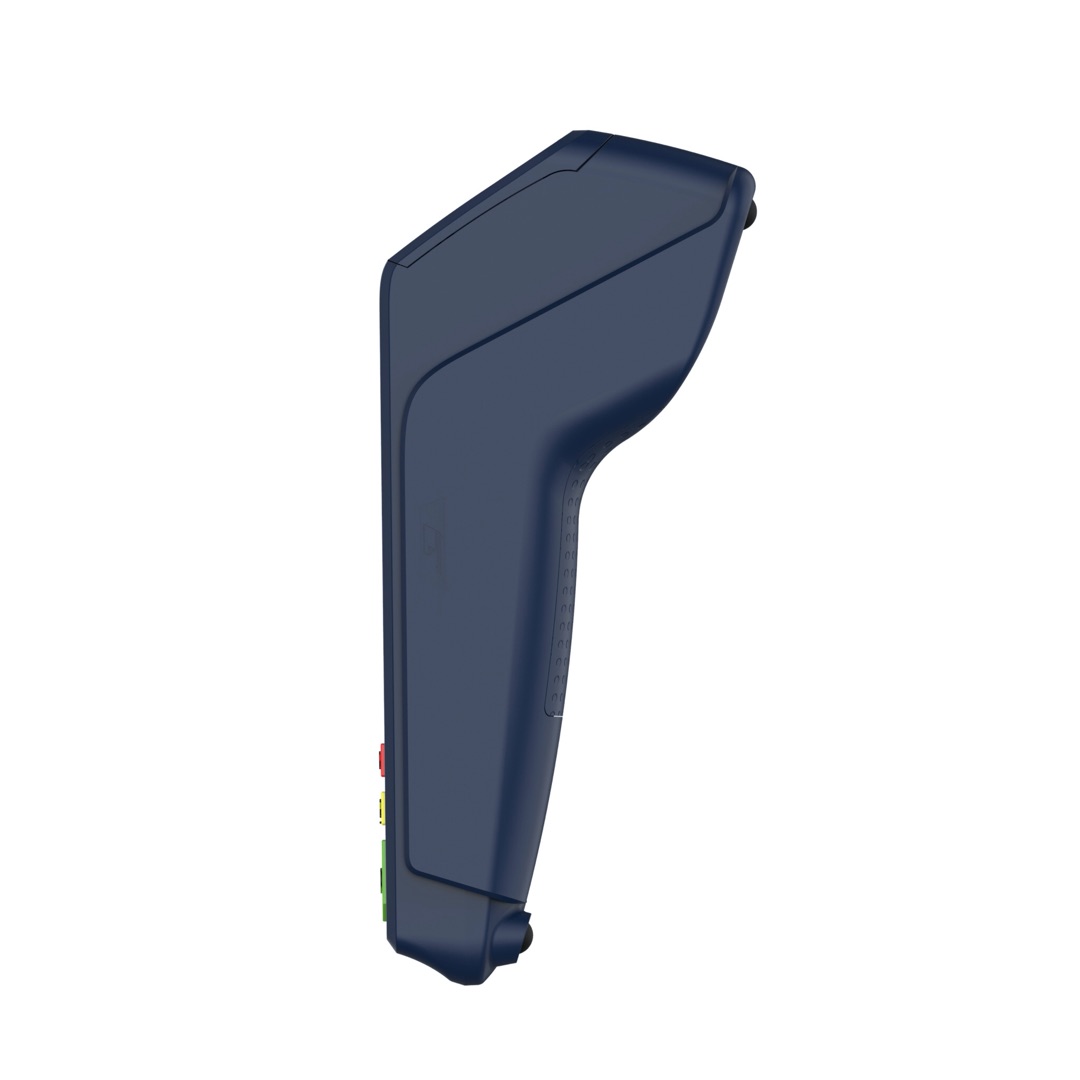

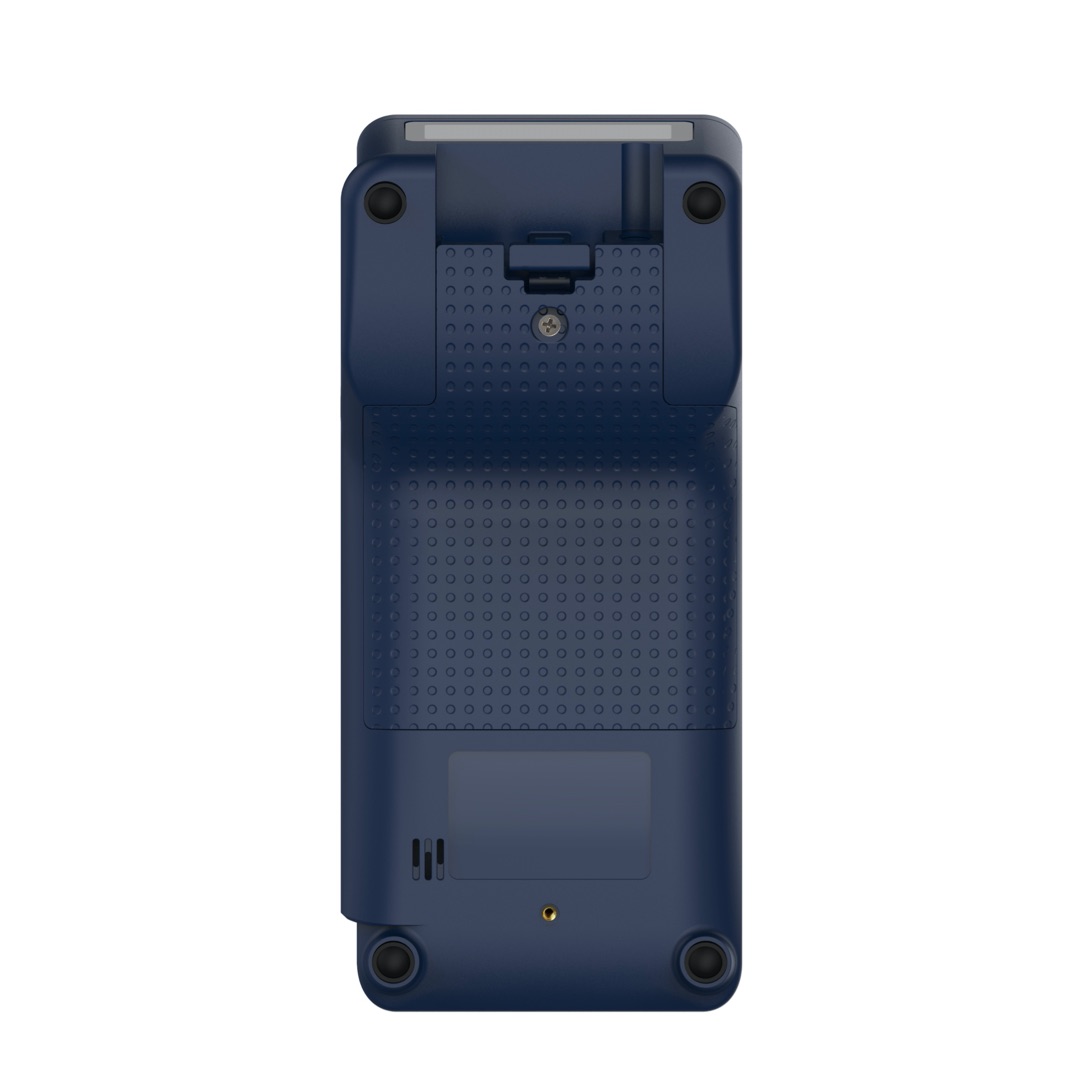

mobile POs-terminal TACTILION T6
CPU
Quad-Core Processor CORTEX-A35 1.3 GHz
Memory
256MB FLASH +256MB DDR
512MB FLASH +512MB DDR (Optional)
512MB FLASH +512MB DDR (Optional)
OS
LINUX
Display
3,5 " (320 x 480)
Capacitive Touchscreen
1.9” Customer B&W Screen (option)
Capacitive Touchscreen
1.9” Customer B&W Screen (option)
Keypad
16 Functional Keys
Card readers:
Magstripe Cards: Track 1/2/3, Bi-Directional, ISO7812
Smart Cards: SO7816, 1.8В/3В/5В
Contactless Cards: 13.56MHz ISO14443 Type A/B
Smart Cards: SO7816, 1.8В/3В/5В
Contactless Cards: 13.56MHz ISO14443 Type A/B
Communication
Ethernet;
4G/3G/2G (option);
WiFi (option);
Modem (option)
4G/3G/2G (option);
WiFi (option);
Modem (option)
Security
PCI PTS 6.x, EMV L1 & L2, PayPass, PayWave, AmEx, TQM, CE, ROHS
Power & Battery
Li-Po battery: 3,7 V, 2600 mAh
9V, 2A, 5,5 mm
9V, 2A, 5,5 mm
Size
L x W x H = 171 x 80 x 67 mm
Weight
380 g (battery included)
Environmental parameters:
Operating temperature: 0° to 50° C
Storing temperature: -20° to 70° C
Humidity: 5% to 95%, non-condensing
Storing temperature: -20° to 70° C
Humidity: 5% to 95%, non-condensing
Multi-media
Built-in speaker
Microphone
Microphone
Printer
High Speed Thermal Printer
INTERFACES
1 x TYPE-C USB
1 x TYPE-A USB
1 x Ethernet
1 x PINPAD/RS232
1 x Telephone line (option)
1 x TYPE-A USB
1 x Ethernet
1 x PINPAD/RS232
1 x Telephone line (option)
Slots
2xPSAM
2 x SIM
1 x SD
2 x SIM
1 x SD
