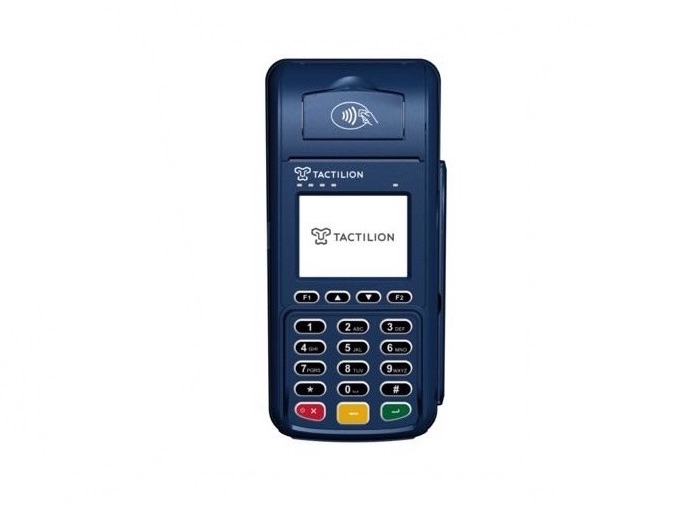

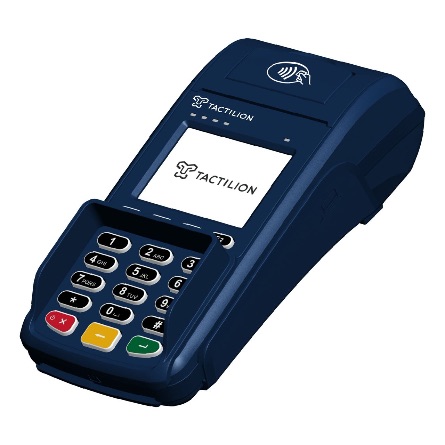

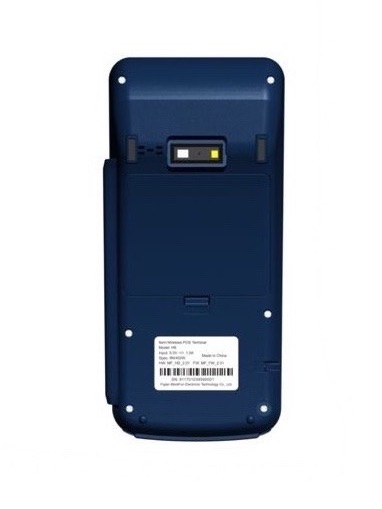

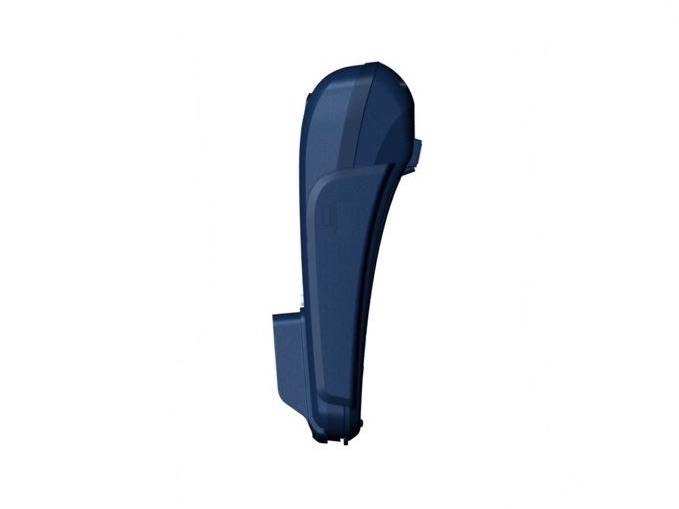

MOBILE POS-TERMINAL TACTILION H9
CPU
ARM CORTEX-A7 1.2 ГГц
MEMORY
512MБ FLASH
256MБ RAM
OS
LINUX
DISPLAY
2,4 " (320 x 240) color LCD with backlight
Supports handwriting signature
KEYPAD
10 Power Key
9 Functional Keys
CARD READERS
Magstripe Cards: Track 1/2/3, Bi-Directional
Smart Cards: EMV L1 and L2 supported
Contactless Cards: NFC, ISO/IEC 14443, Type A/ B, 13.56 MHZ
NFC Tag
COMMUNICATION
2G/3G/4G
Wi-Fi
USB
SECURITY
PCI PTS 5.x, EMV Contact L1 & L2, EMV CL L1, PayPass, PayWave
Expresspay, TQM, CE, RuPay, CE, FCC, D-PAS, Quickpass, PURE, ROHS
Expresspay, TQM, CE, RuPay, CE, FCC, D-PAS, Quickpass, PURE, ROHS
POWER & BATTERY
Li-Po battery: 3.7 V, 2600 mAh
Input: 100~240V, 0.5А 50/60Gz
Output: 5V DC 2А
CAMERA (optional)
0.3 MP rear camera
QR-code reader
Laser sight line
SIZE & WEIGHT
178x82x56mm
337 g (battery included)
ENVIRONMENTAL PARAMETERS
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5% to 95% (non-Condensing)
Storage Temperature: -20°C to 60°C
Relative Humidity: 5% to 95% (non-Condensing)
PRINTER
High Speed Thermal Printer
Paper Roll Width: 58mm, Diameter: 40mm
INTERFACES
1 USB Type-C
SLOTS
1 SAM
1 SIM
PIN-PAD
ANSI X9.8/ISO9564, ANSI X9.9/ISO8731
Supports DES, 3DES, RSA, SHA-256, MK/SK, DUPKT
