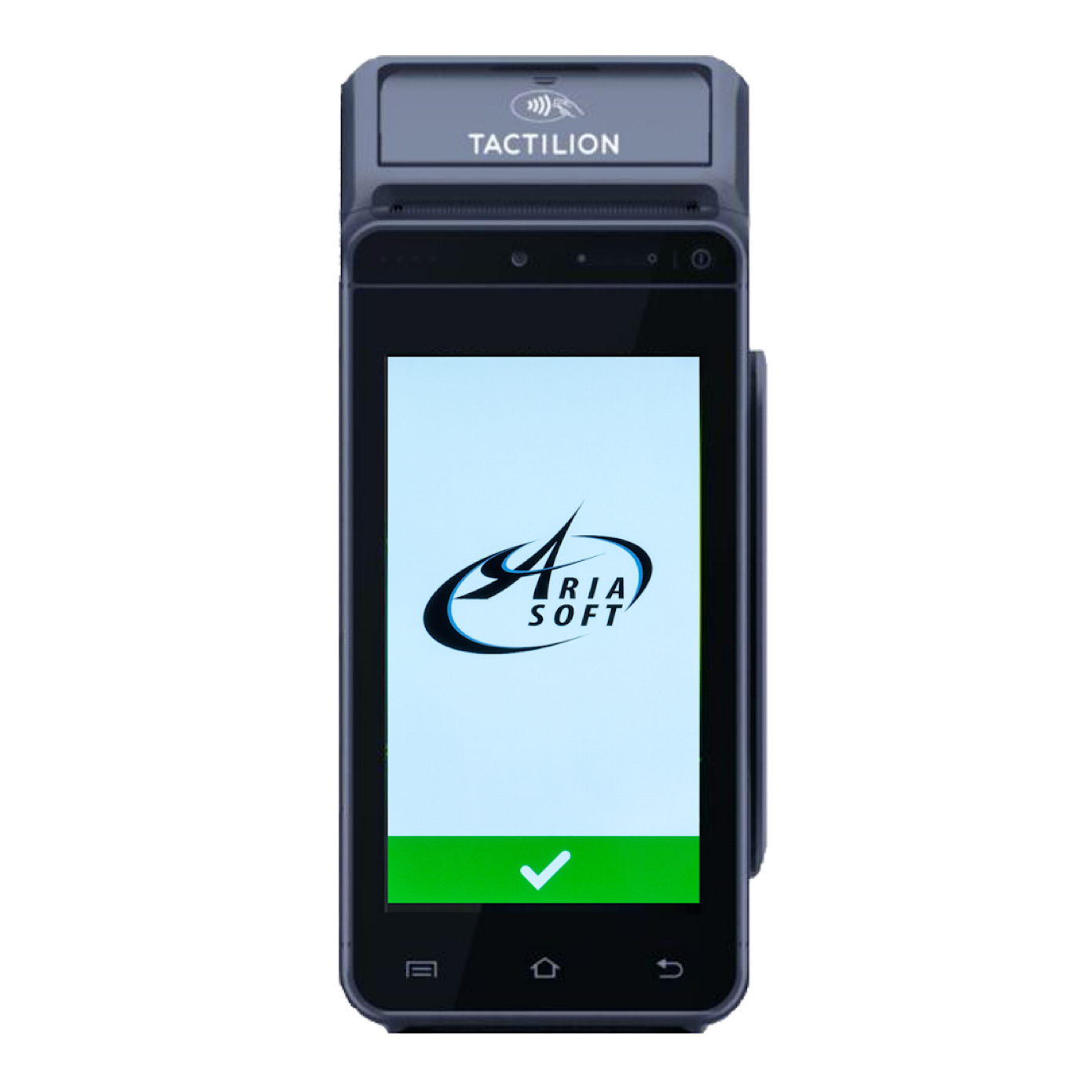

SMART POS-TERMINAL TACTILION i9100


CPU

  •  AP: Quad-core 1.3GHz
  • SP: MAX32555

Memory

  • RAM:1GB
  • ROM:8GB

OS

Android 8.1

Display

  • 5.5" HD 1280 x 720 Color LCD

Card readers:

  • Magstripe Cards: Track 1/2/3, Bi-Directional, ISO7811/7812/7813
  • Smart Cards: ISO/IEC 7816
  • Contactless Cards: Support Mifare, type A/B/C , Felica

Communication

  • FDD-LTE,TDD-LTE,WCDMA,CDMA2000,CDMA 1x
  • GSM/EDGE/GPRS
  • Bluetooth:BT 4.1+BR/EDR+BLE
  • Wi-Fi:IEEE 802.11 a/b/g/n 2.4GHz/5GHz

Security

PCI, EMV L1&L2, EMV Contactless L1, MasterCard Contactless, Visa PayWave etc.

Power & Battery

  • Input: 100~240V AC 50~60Hz
  • Output: 5V/1.5A
  • 3.7V/ 5200mAh

Size

L x W x H = 188 x 81 x 61 (35mm thinnest)

Weight

457 g (battery included)

Environmental parameters:

  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -40°C to 70°C
  • Relative Humidity: 10% to 95%(Non-Condensing)

Multi-media

  • Speaker(1W)
  • Buzzer

Printer

  • Paper Roll Width: 58mm, Diameter: 40mm
  • Resolution: 203dpi (8dot/mm)
  • Print speed: 50~70mm/s
  • Supports 1D/2D bar code printing

INTERFACES

  • 1xMicro USB (data transferring and charging, USB OTG 2.0)
  • Pogopin (5pin)

Slots

  • 1xMicro SIM + 2xSAM
  • or 1xMicro SIM + 1xSIM + 1xSAM
  • Micro SD/TFx1, up to 128 GB

CAMERA

  • Front 2MP FF (option)
  • Rear 5MP AF
  • Rear camera decoding

GPS

  • GPS
  • A-GPS
  • BEIDOU
  • GLONASS
  • Galileo

MULTIFUNCTIONAL DOCKING BASE (option)

  • stylus
  • thermosensitive paper
  • Charging Cradle
  • Multi-Function Charging Cradle
